SKU: 38030

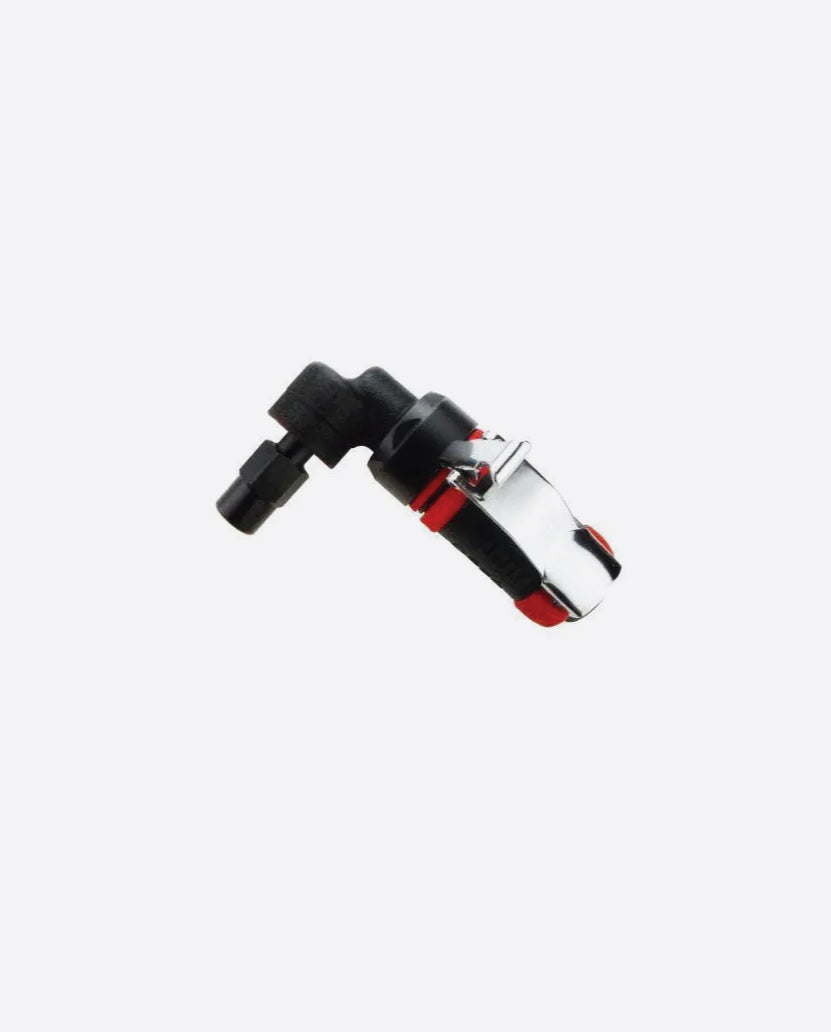

1/4" and 1/8" Small Right Angle Air Die Grinder, Low Profile, 19000 Rpm
Master Palm 1/4" and 1/8" mini small right angle die grinder with low profile angle, 19000 rpm, fits in your palm perfectly. Comes with 1/4" and 1/8" collets. Free Speed:19000 rpm. Ultra mini size design with the shortest housing body in the market, beat up all the imitation in terms of performance and design. This min
Grinders/Master Palm
$224.00
Secure Shopify checkoutAvailable payment methods—including a configured manual Zelle option—are selected during Shopify checkout.
Master Palm 1/4" and 1/8" mini small right angle die grinder with low profile angle, 19000 rpm, fits in your palm perfectly. Comes with 1/4" and 1/8" collets.
- Free Speed:19000 rpm.
- Ultra mini size design with the shortest housing body in the market, beat up all the imitation in terms of performance and design. This mini right angle die grinder literally fits within your palm and your shirt pocket, light weight and is favored by many tool users.
Super Low Profile Right Angle Drive Design

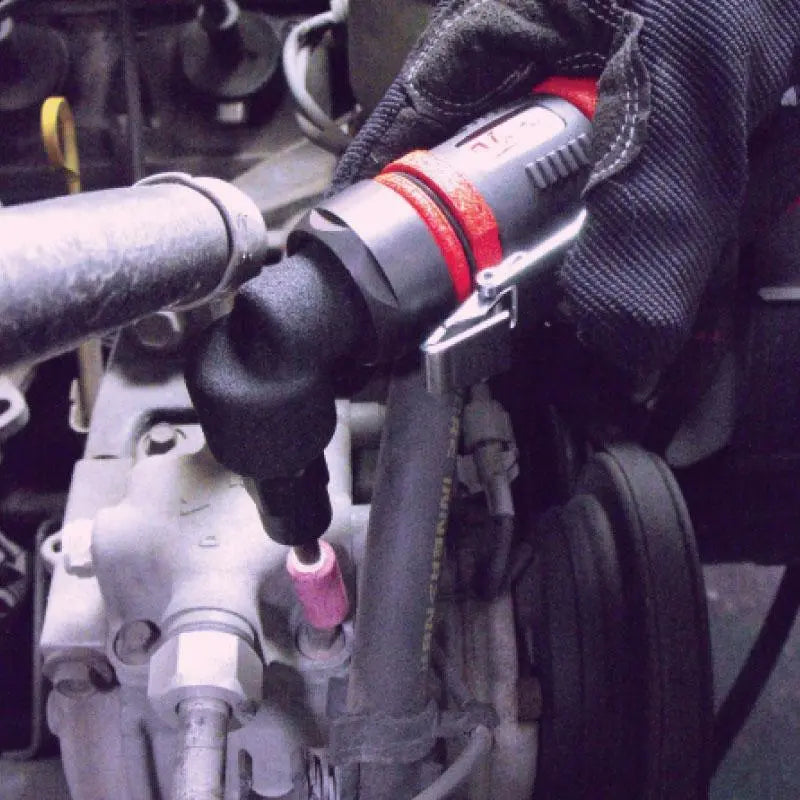

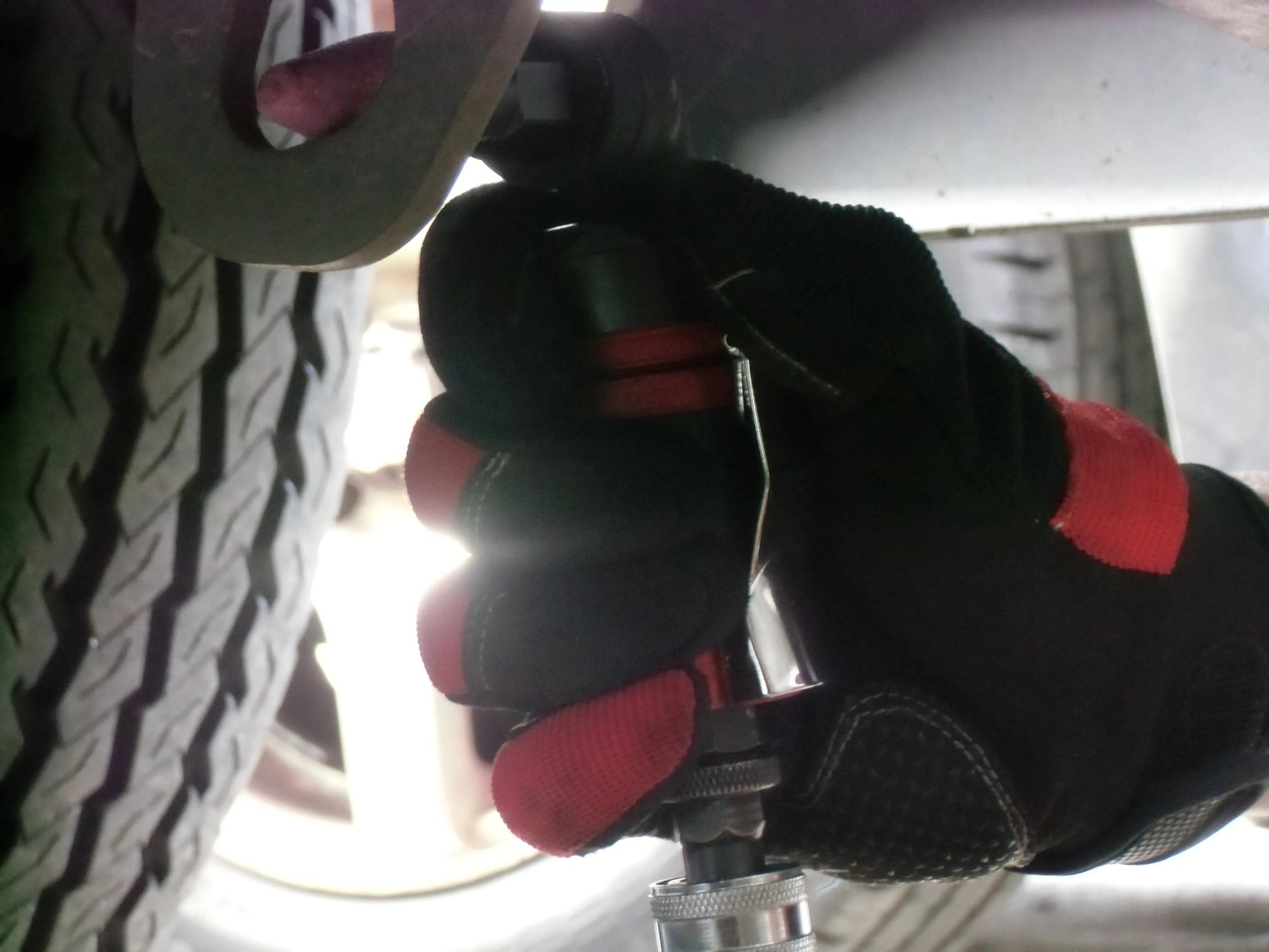

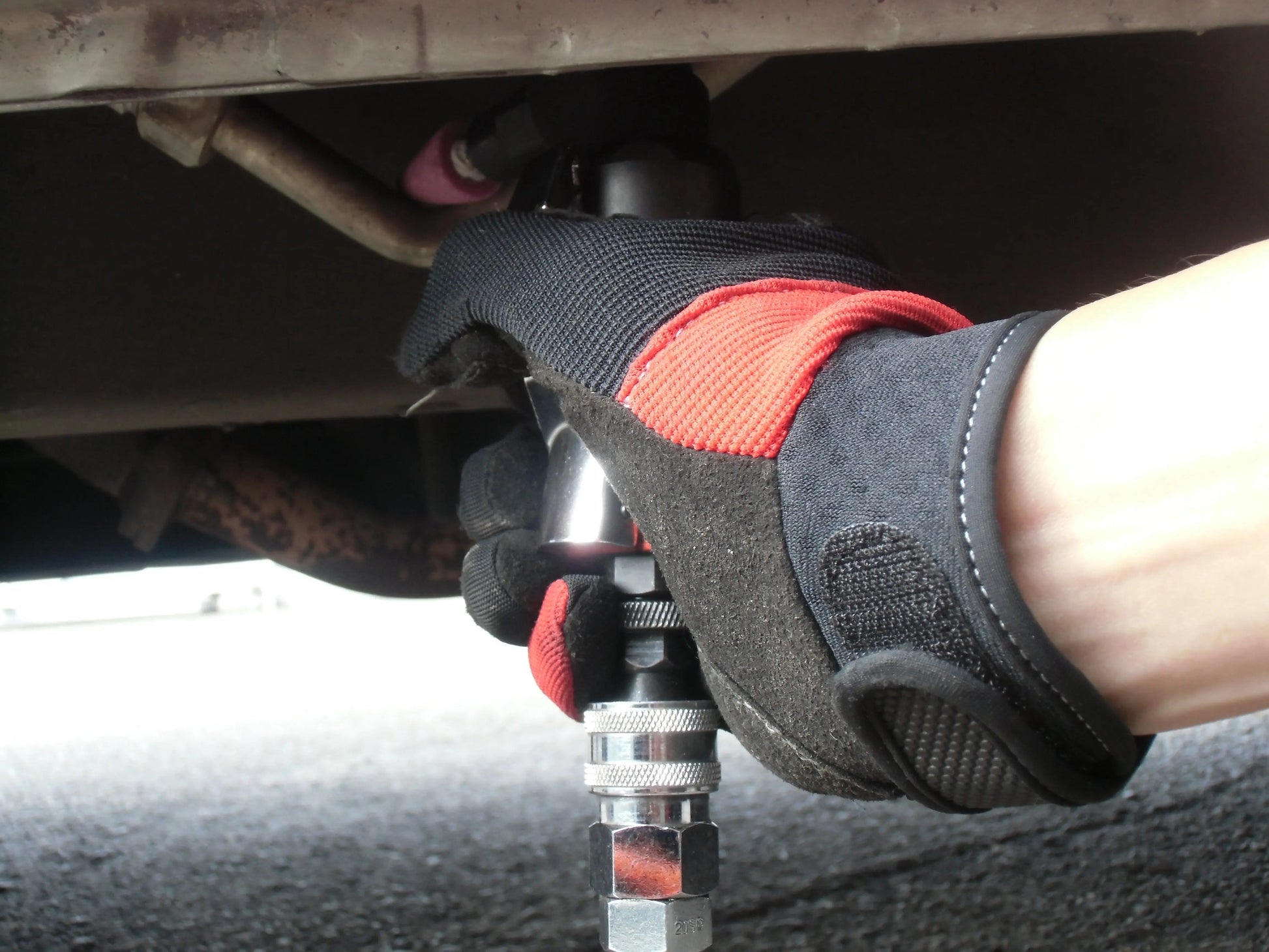

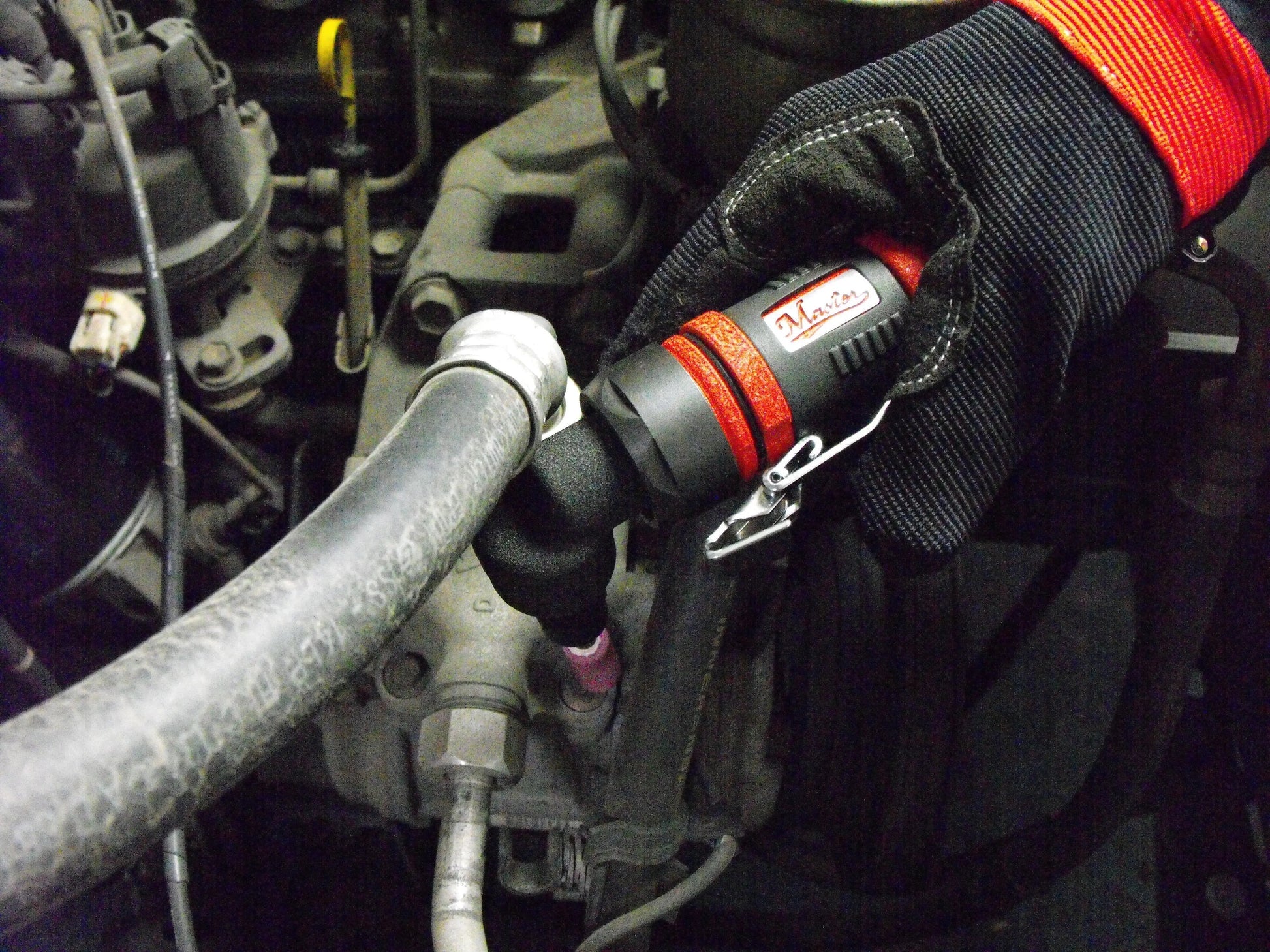

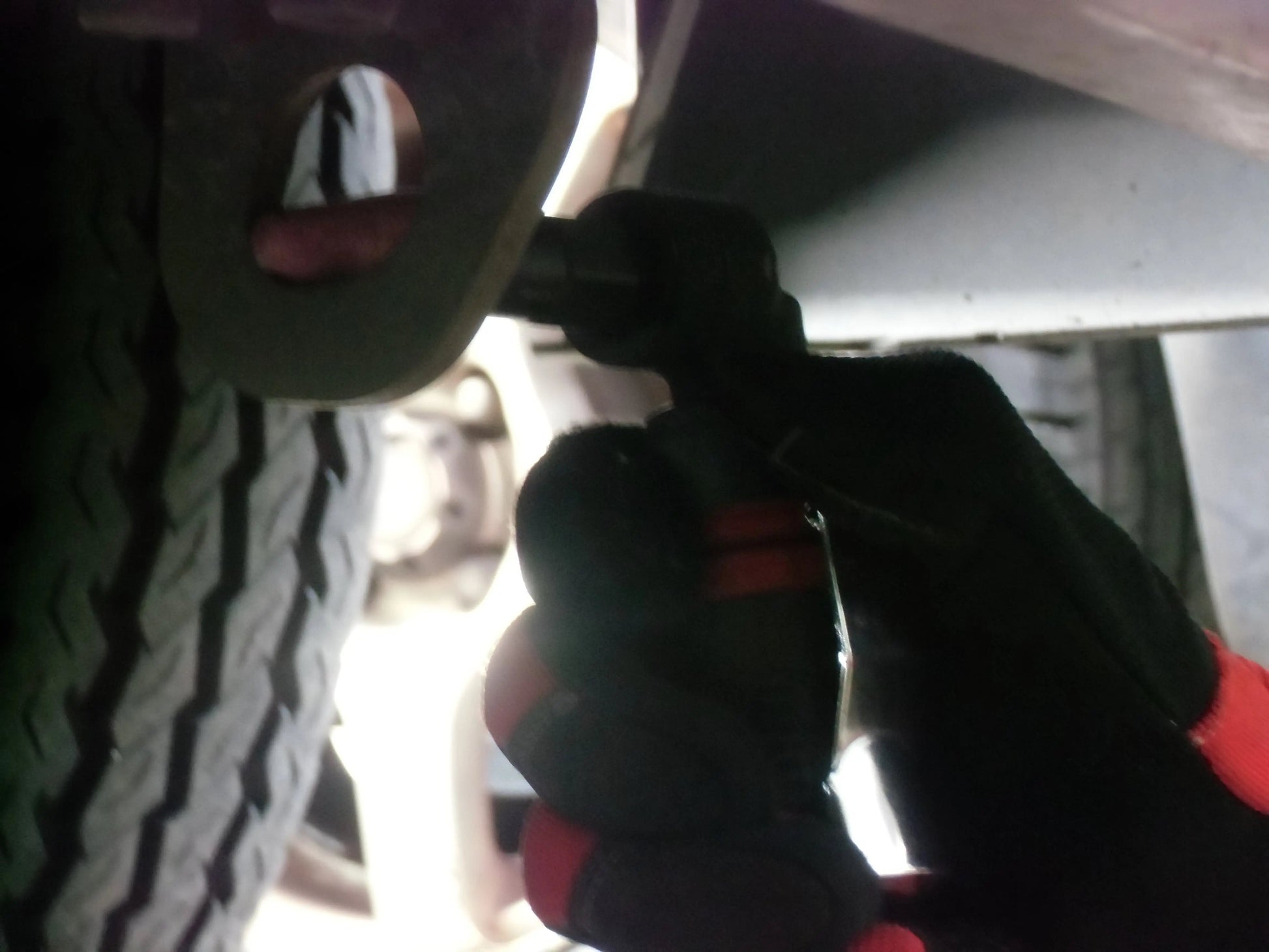

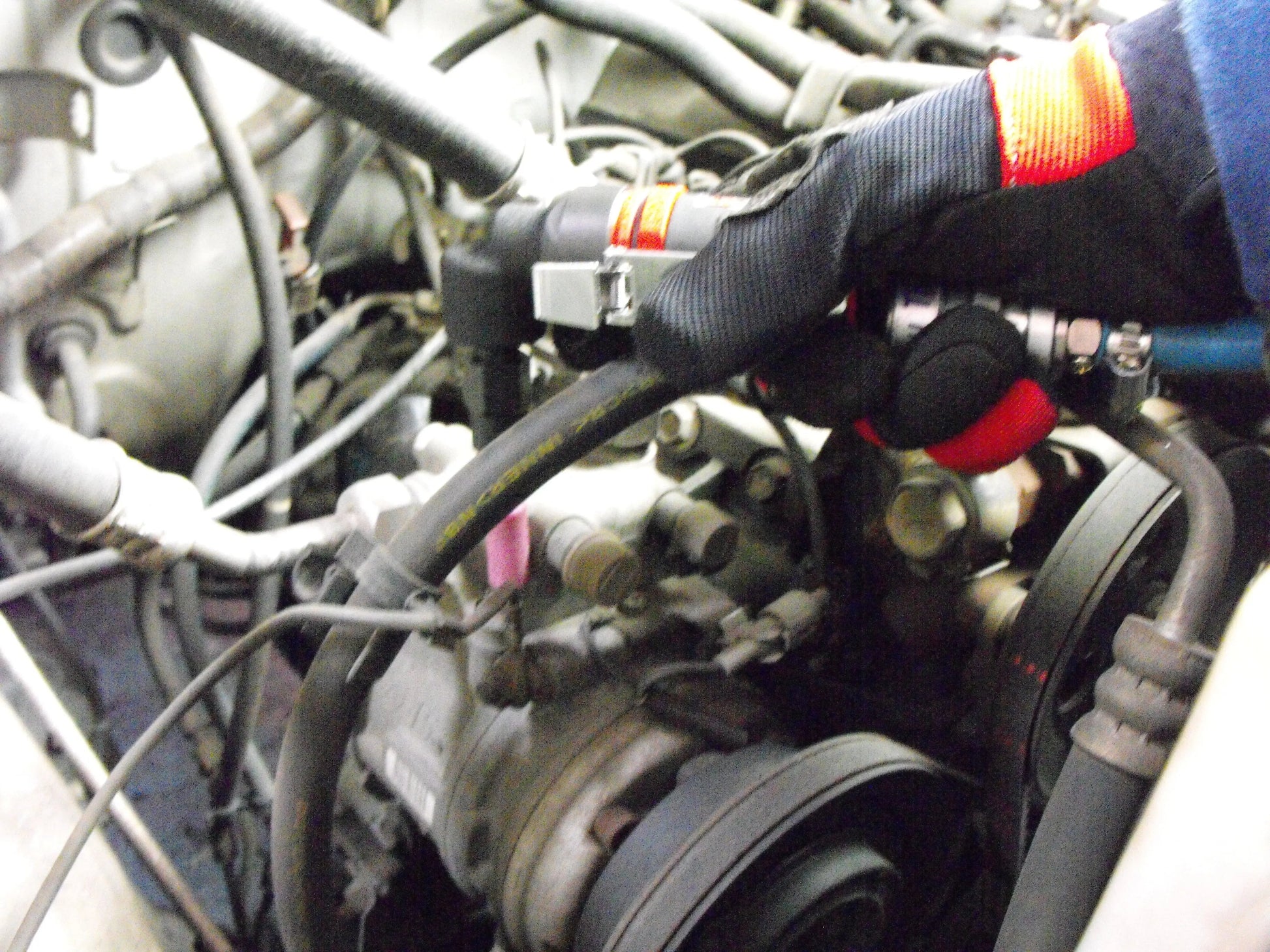

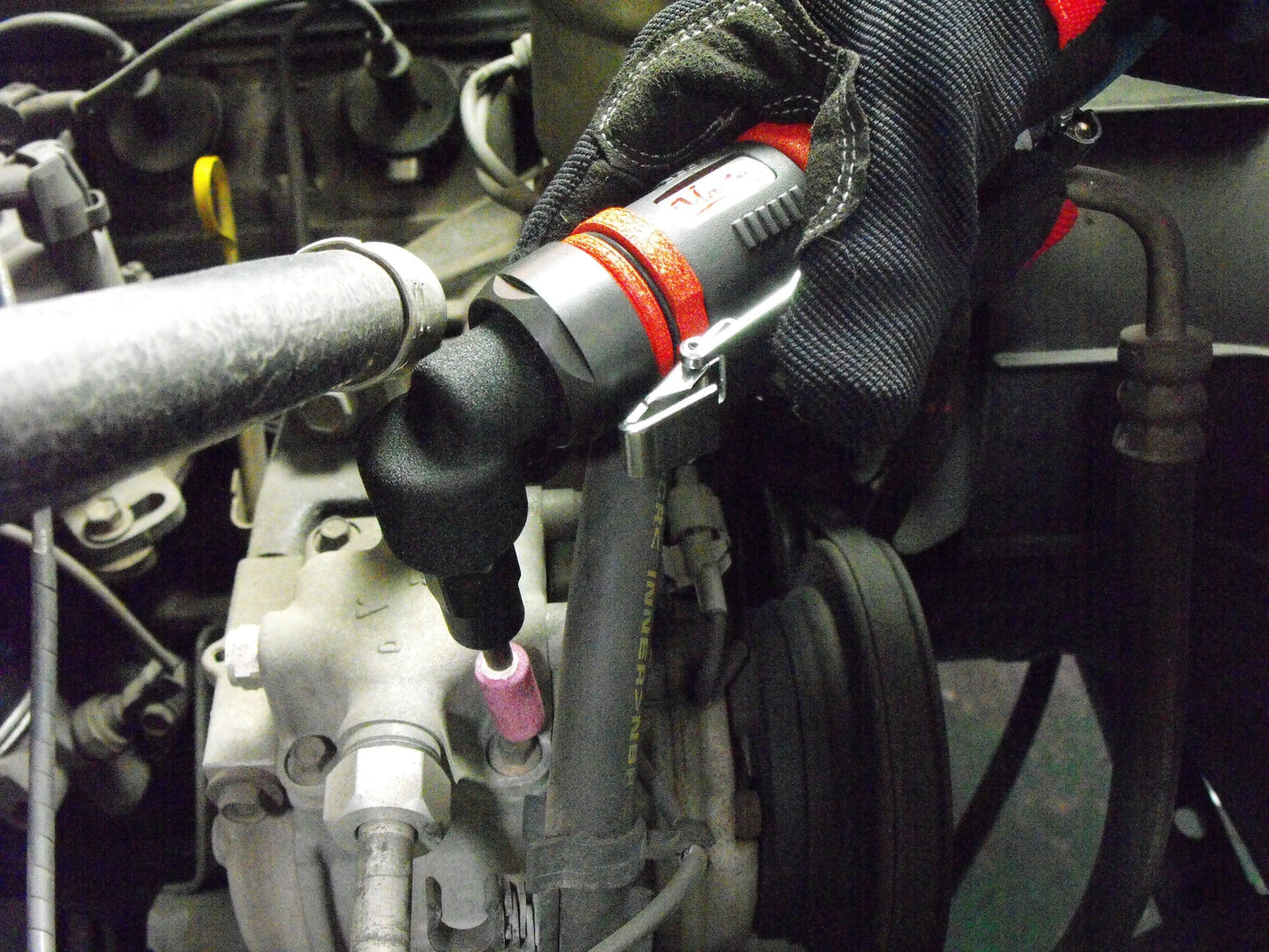

- Super low profile right angle design that allow tool users to reach narrow and hard to work areas with angles and depth.
1/4" and 1/8" Collets for the Pro
- This mini right angle die grinder comes with 1/4" and 1/8" collets that users can attach different universal type abrasive accessories designed for air tools for jobs required details or multiple processing. Users can also attach different accessories to achieve their job easily.
Long Life Span and Powerful Performance
- Master Palm mini right angle die grinders are ISO 9001:2008 Certified and CE Bookmarked. It has very long life span than many other imitation in the market. Since we designed and make those tools ourselves, therefore, we do not charge any repair labor fee even after warranty. Tool users just have to pay for the part replacement fee.
Light Weight and Low Profile Design
- Quick and light weight design suitable for one hand operation which is different from traditional bulky die grinders. This right angle die grinder comes with safety lever with low noise rating.
Availability: Ship in 6-8 Business days
| SKU | 38030 |
|---|---|
| Item Name | 1/4" and 1/8" Mini Right Angle Die Grinder, Low Profile Angle, 19000 Rpm |
| air pressure | 80 psi/5.52 bar |
| angle height above collect | 0.94/24 mm |
| compatible collet sizes | 1/4"/6.35 mm 1/8"/3.175 mm |
| exhaust | rear |
| free speed | 19000 rpm |
| horse power | 0.25 hp/0.19kw |
| hose size | 3/16"/4.76 mm |
| noise rating | 82 dba |
| Free Speed | 16500 RPM |
|---|---|
| Air Consumption | 12 SCFM |
| Air Consumption | 1.86 CFM |
| Air Consumption | 265.0752 m³/hr |
| Air Consumption | 4.41792 m³/min |
| Air Pressure | 5.6248 kg/cm² |
| Air Pressure | 80 PSI |
| Air Pressure | 5.52 bar |
| Air Pressure | 551.6 kPa |
| Angle Height | 0.94 in |
| Angle Height | 24 mm |
| Overall Length | 4.33 in |
| Overall Length | 110 mm |
| Weight | 0.34 kg |
| Weight | 0.75 lb |
| Exhaust | Rear |
| Noise Level | 82 dBA |
| Air Hose Size | 3/16 in |
| Air Hose Size | 4.76 mm |
| Horsepower | 0.25 HP |
| Power | 0.19 kW |
| Collet Size | 1/4 in |
| Collet Size | 1/8 in |
| Collet Size | 6 mm |
| Collet Size | 3 mm |
Features
Key Features
- Low profile angle palm mini series design for compact industrial use
- Free speed of 19,000 rpm for efficient grinding performance
- Optional muffler MSA-005A available for noise reduction
- Durable construction suitable for factory environments
- Rear exhaust design to direct airflow away from operator
Applications
Applications
The Right Angle Die Grinder is ideal for precision grinding, deburring, and finishing tasks in industrial settings. Its compact size and high-speed operation make it suitable for confined spaces and detailed work on metal, plastic, and composite materials in manufacturing and maintenance operations.
