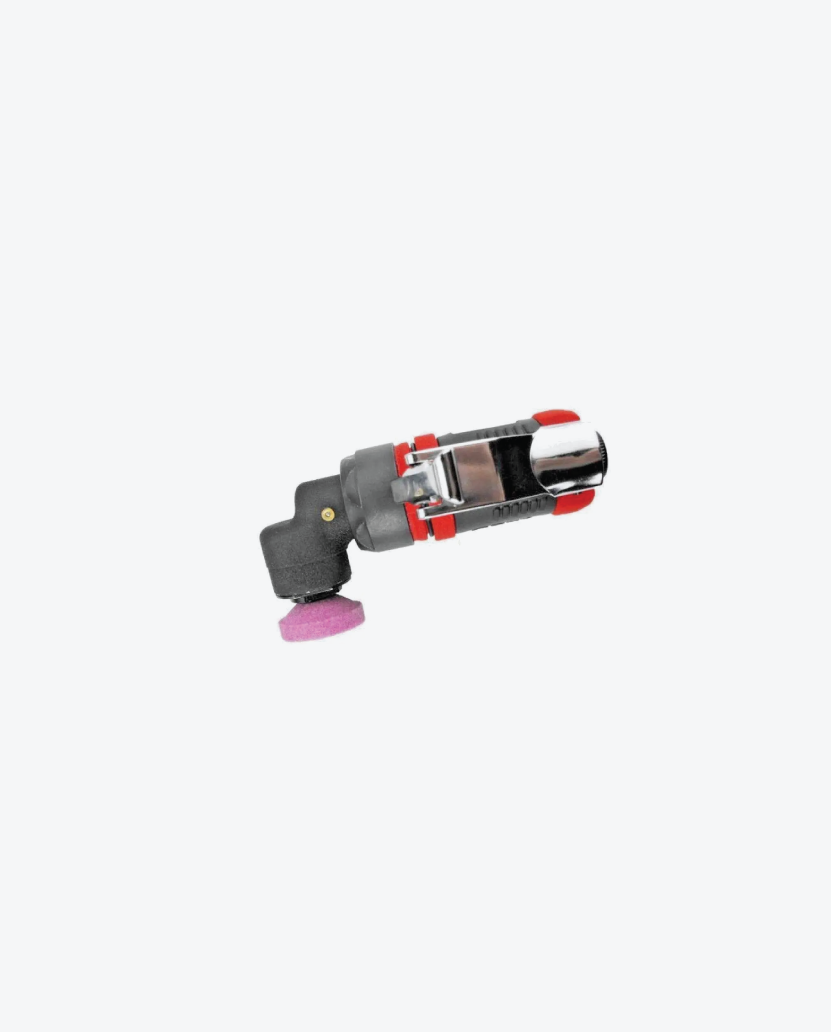

Small Right Angle Micro Stone Air Die Grinder - Optional 1/4-Inch Roloc Pad
Industrial mini right angle air die grinder, 16500RPM can fit M6 micro stone or 1/4-inch roloc backing pad for sanding and grinder.
Industrial Micro Stone Mini Low Profile Right Angle Disc Die Grinder, 16500 Rpm with 1/4" mandrel.

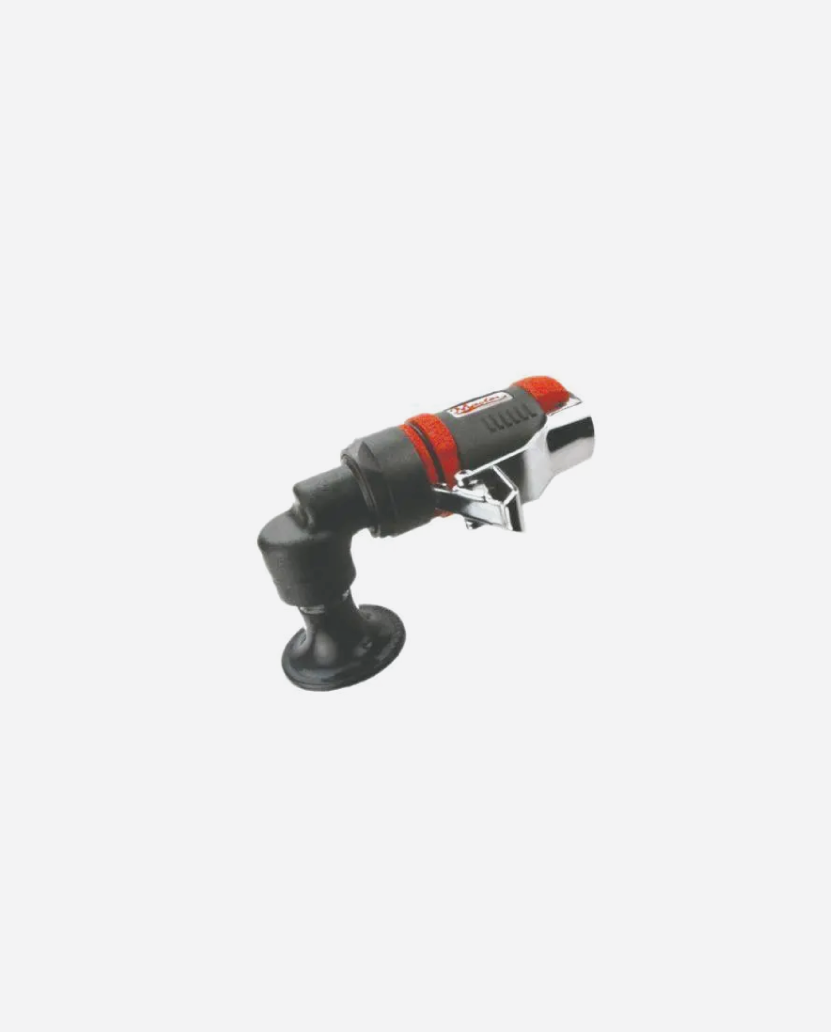

Use Die Grinder As A Sander
Master Palm pneumatic right angle micro stone die grinder can be used as a sander when it is connected with a roloc holder for twist-lock discs.
No. 38050 is a specialty air die grinder tool that is also designed as a sander for refining grinding, sanding and polishing. This die grinder tool equipped with a m6 diameter male shaft can fit m6 screw hole 30 mm micro stones and m6 screw hole roloc backing pad to fit different types universal twist and loc ( roloc ) discs.
Micro Angle Grinder Gross Measurement
For any questions about how to use this grinder to fit with your machinery, please do not hesitate to contact us.
What's Included
Low Profile Angle Palm Mini-Series Right Angle Disc Die Grinder.
- Free Speed:16500 rpm.
- 10 x MSA-306G-060 Grinding Stones Included.

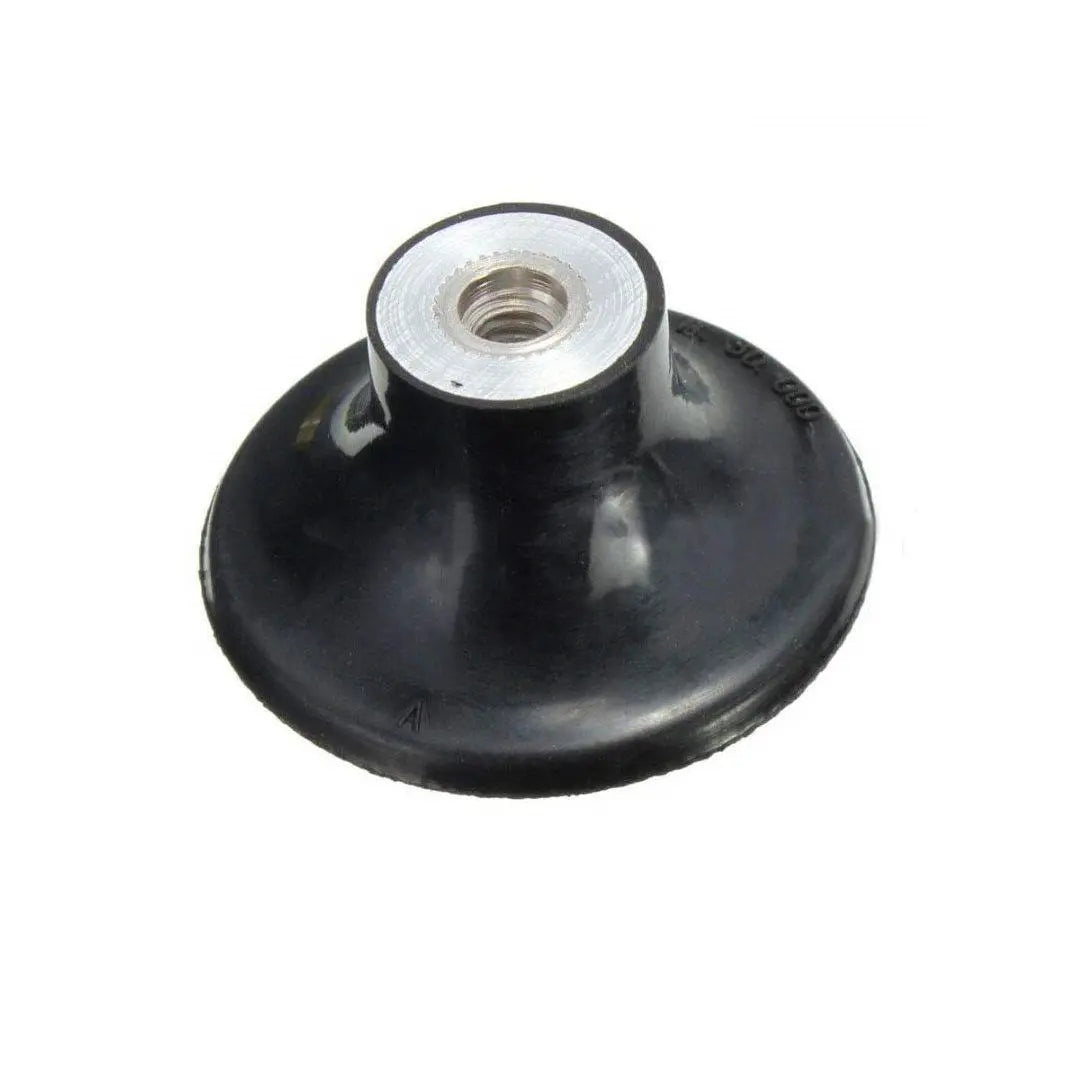

- 1 x Roloc Disc Pad Included
Compatible Accessory
This mini right angle disc angle die grinder fits m6 shaft screw hole roloc backing pad and universal 1/4" twist and lock grinding or sanding discs. The tool comes with 1x 2" Roloc Holder.Features
- Palm Size Housing Grip Design Palm mini-series die grinders come with various types. Fit right into your palm. Help you complete your job with dexterity. Light Weight Suitable for female and male tool users, reducing stress on your hand and writs. while having your job done right. Low Profile Angle Design 0. 4cm) Low profile angle height design avoid the impossibility for tasks located at the corner area. Rear Exhaust Palm mini-series and low profile angle series mini die grinders use rear exhaust. You may connect muffler hose for noise reduction. Collet Adapter
- The collet adapter comes with the die grinder based on compatible collet size below. Users can use different accessories with different collet size. Shortest Housing Grip.
- The tool grip is so mini that fit into your palm size, the housing grip length is about.
Compatible Accessories
Please contact us to purchase an accessory or you may purchase third party accessory designed for air tools. All Master Palm pneumatic tools use universal air tool accessories, therefore, it extends its usability and compatibility when choosing the appropriate grinding stone, paper and rubber pad to use.
| SKU | 38050 |
|---|---|
| Item Name | MPT-38050 Industrial Micro Stone Mini Low Profile Right Angle Die Grinder, 16500 Rpm |
| air pressure | 80 psi/5.52 bar |
| angle height above collect | 0.94/24 mm |
| compatible collet sizes | 1/4"*1.0p" |
| exhaust | rear |
| free speed | 16500 rpm |
| horsepower | 0.25 hp/0.19kw |
| hose size | 3/16"/4.76 mm |
| noise rating | 82 dba |
| Free Speed | 19000 RPM |
|---|---|
| Air Consumption | 12 SCFM |
| Air Consumption | 1.86 CFM |
| Air Consumption | 265.0752 m³/hr |
| Air Consumption | 4.41792 m³/min |
| Air Pressure | 5.6248 kg/cm² |
| Air Pressure | 80 PSI |
| Air Pressure | 5.516 bar |
| Air Pressure | 551.6 kPa |
| Angle Height | 0.94488189 in |
| Angle Height | 24 mm |
| Overall Length | 4.330708661 in |
| Overall Length | 110 mm |
| Weight | 0.34 kg |
| Weight | 0.748 lb |
| Exhaust | Rear |
| Noise Level | 82 dBA |
| Air Hose Size | 3/16 in |
| Air Hose Size | 4.7625 mm |
| Horsepower | 0.25 HP |
| Power | 0.1875 kW |
| Collet Size | M6*1.0P in |
Features
Key Features
- Low Profile Angle Design: 0.4 cm height allows access to tight corner areas.
- Palm Size Housing Grip: Compact grip fits comfortably in the palm for enhanced control and reduced hand fatigue.
- Lightweight Construction: Suitable for all operators, minimizing wrist and hand stress during extended use.
- Rear Exhaust: Directs exhaust away from the operator; compatible with optional muffler hose for noise reduction.
- Collet Adaptor: Supports various accessory sizes for versatile industrial applications.
- High Free Speed: 16500 rpm ensures efficient material removal and finishing.
Applications
Industrial Applications

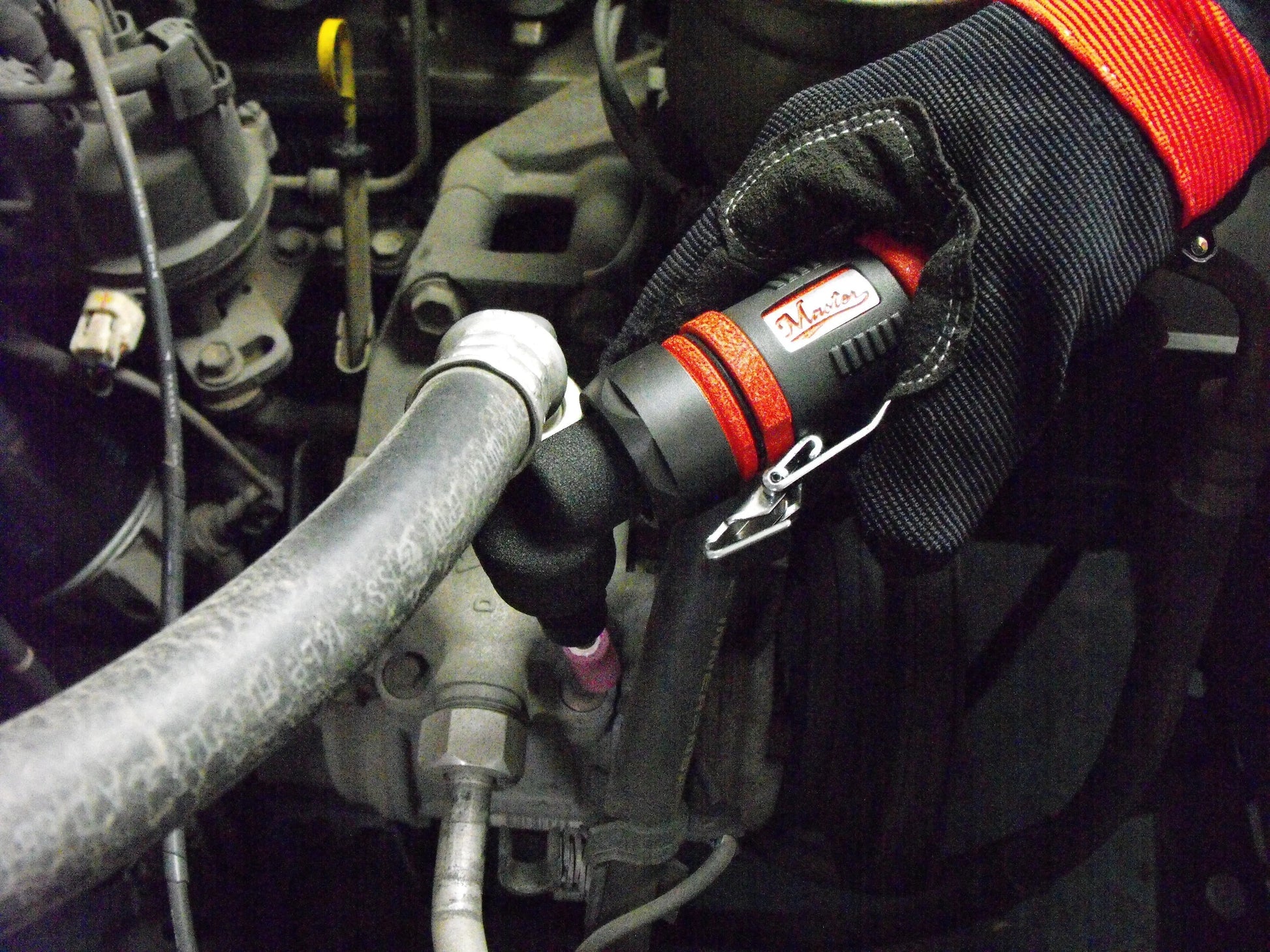

The Right Angle Die Grinder is ideal for precision grinding, polishing, and finishing tasks in confined spaces. Its low profile angle and compact grip design make it suitable for factory floor use where dexterity and tool control are critical. The tool supports various accessories via its collet adaptor, enabling versatility across multiple industrial operations.
